Transforming Output

New to setting up Transposit? Learn how to get started.

Optionally, use Transposit's transformers to process complex data coming in from external services.

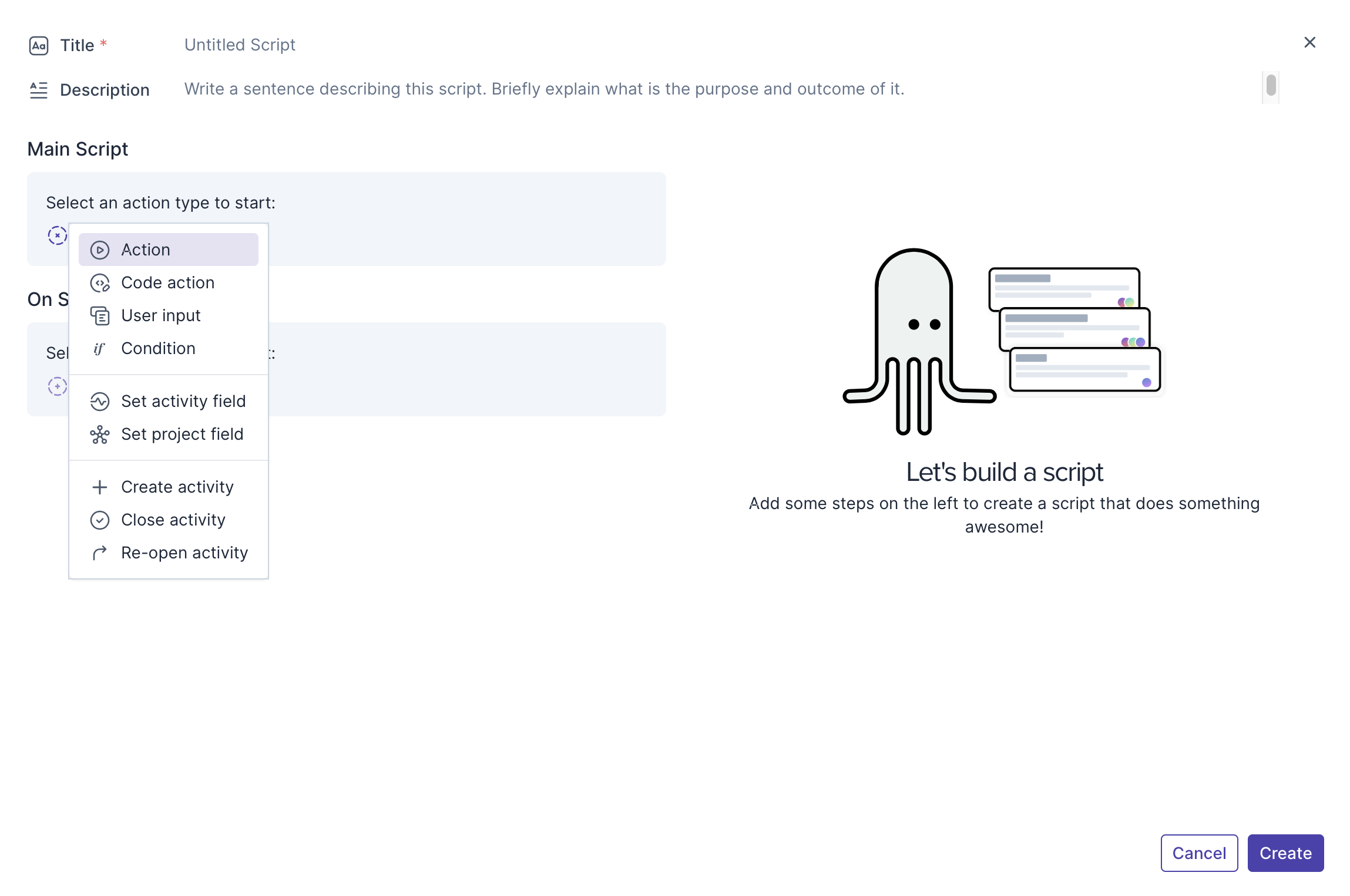

  1. Start Creating a New Action. Select Action in the Script Builder drop-down list.

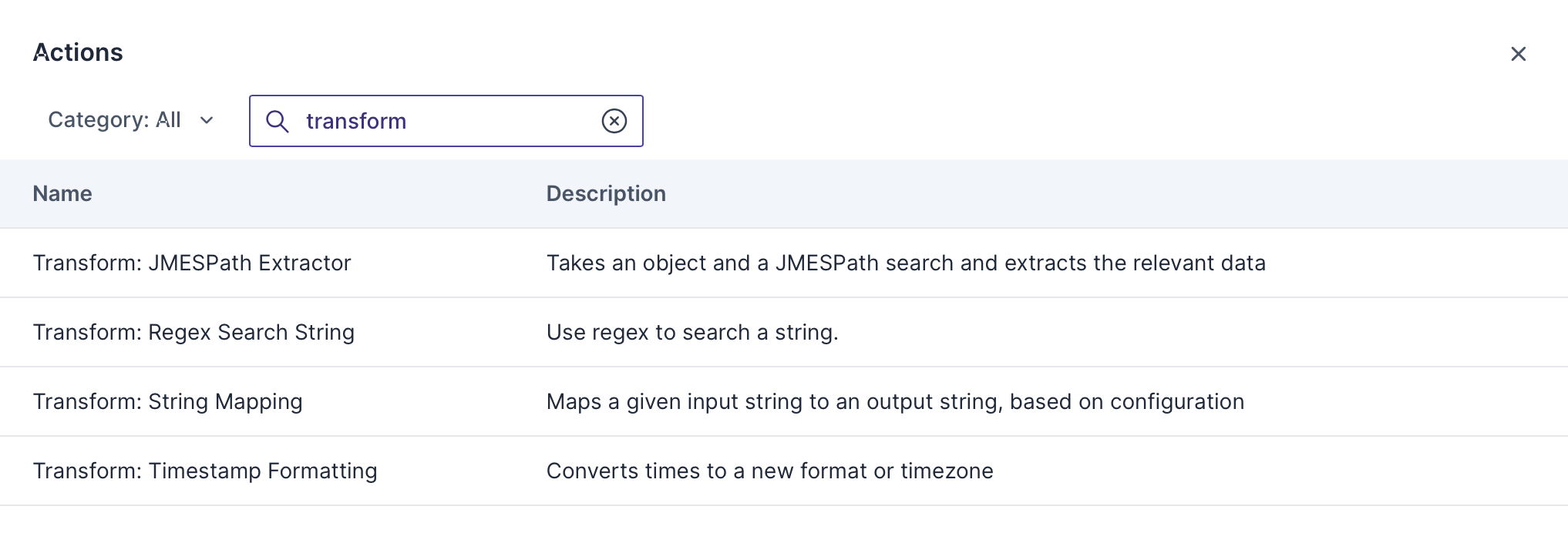

  2. Select a transformer. Choose the transformation action you need.

    • JMESPath Extractor. Takes an object and a JMESPath search and extracts the relevant data.
    • Regex Search String. Uses regex to search a string.
    • String Mapping. Maps a given input string to an output string, based on configuration.
    • Timestamp Formatting. Converts times to a new format or timezone.

JMESPath Extractor#

JMESPath is a query language for JSON that lets you extract and transform elements from a JSON document.

For details on the above, see https://jmespath.org/tutorial.html.

Regex Search String#

When you select the regex search string transformer, you can use a subset of Python's re library as an output processor.

The action types supported are the following.

Scans through the string looking for the first location where this regular expression produces a match, and returns a corresponding match object.

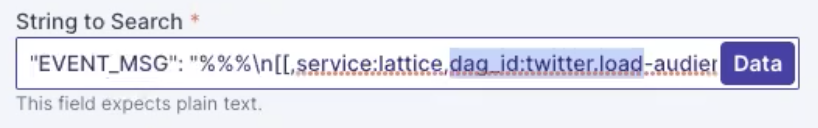

In the above example, you can see 'dag_id' as part of the search string that the regex pattern is set to search.

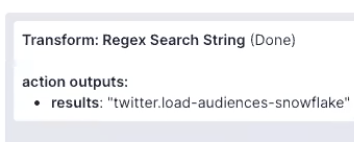

When the script is run with the settings above, the output is as follows.

Match#

If zero or more characters at the beginning of the string match this regular expression, returns a corresponding match object.

Sub#

Returns the string obtained by replacing the occurrence of a pattern in a string by the replacement string.

For details on each of the above, see https://docs.python.org/3/library/re.html.
