New Relic

New to setting up Transposit? Learn how to get started.

Prerequisites

Available Actions

  • Acknowledge Issue - Acknowledges an issue in New Relic
  • Graph Dashboard Page - Graphs a snapshot image of a New Relic dashboard page
  • Resolve Issue - Resolves an issue in New Relic
  • Select Dashboard - Selects a dashboard in New Relic
  • Select Dashboard Page - Selects a dashboard page in New Relic
  • Select Issue - Selects an active issue in New Relic

Set Up a Webhook

In addition to setting up integrations between Transposit and New Relic, as outlined in the steps in the next section, you can also use webhooks to send incident payloads from New Relic to Transposit.

Click here for more videos.

Add the following to the payload in New Relic to let you bring alert graphs from New Relic into Transposit:

"violationChartUrl":{{ json violationChartUrl }}

To work with webhooks in New Relic, you need the following set up in New Relic:

  • Destinations. Give the destination a name and an endpoint URL that you generate in Transposit. No authorization is required.
  • Alert Conditions. Conditions run from data, which you can see in All Entities, from which you can create alert conditions. Alert conditions are rules for threshold settings and memory usage fow which you want alerts to be sent.
  • Alert Policies. Add your conditions to an alert policy.
  • Workflows. Assign the policy to the workflow, except if you're simply sending test notifications. When you send test notifications, the violationChartUrl image that is sent will not be valid.

Useful New Relic links:

Set Up the Integration

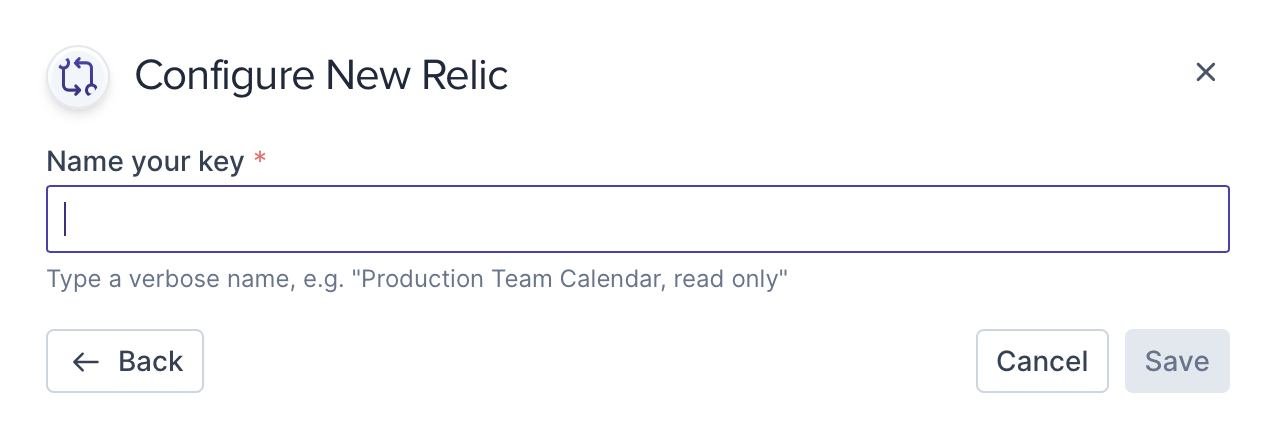

  1. Make sure you're logged into Transposit, then click this link to open the New Relic settings dialog, enter a name, and click Save.

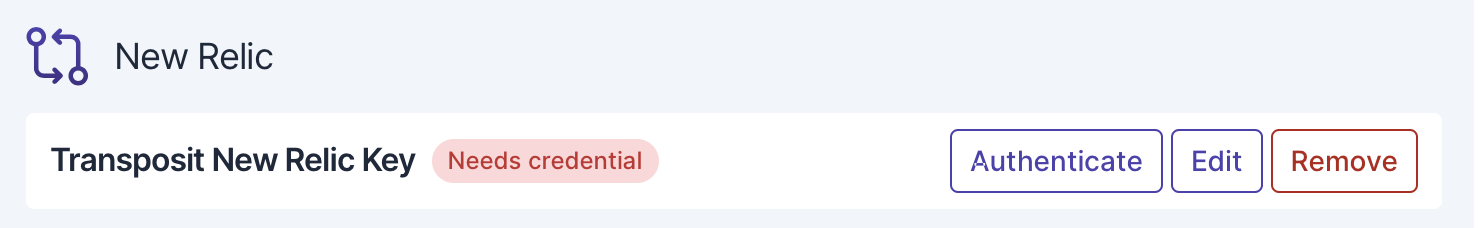

  2. In the Integrations list, where your key is now included, click Authenticate.

  3. Follow the instructions in the dialog to get your key.

    Useful links:

  4. Enter the key received as described above in the dialog in step 3 above and click Save.

Next Steps

Now that you've configured your integration, add one or more of the integration's actions to an automation, test the automation, and then add the automation to an incident type.

  • Add an Action. While creating your automations, when you search for New Relic actions, you see the following.

    When you combine the New Relic actions, you can let Transposit provide the context for one action from another, as shown below.

  • Test the Automation. For example, when you test the Select Dashboard, Select Dashboard Page, and Graph Dashboard Page actions together, you see the following.

  • Add the Automation to an Incident Type. Now that you've tested the automation, make it available to your incident responders by adding it to an incident type.
