Amazon CloudWatch

Prerequisites#

Available Actions#

  • Fetch logs
  • Graph metric

Setting Up the Connector#

  1. In the Service Group Settings, select the Connector Configurations tab, click Add configuration, and search for CloudWatch. Select the item and click Add configuration.

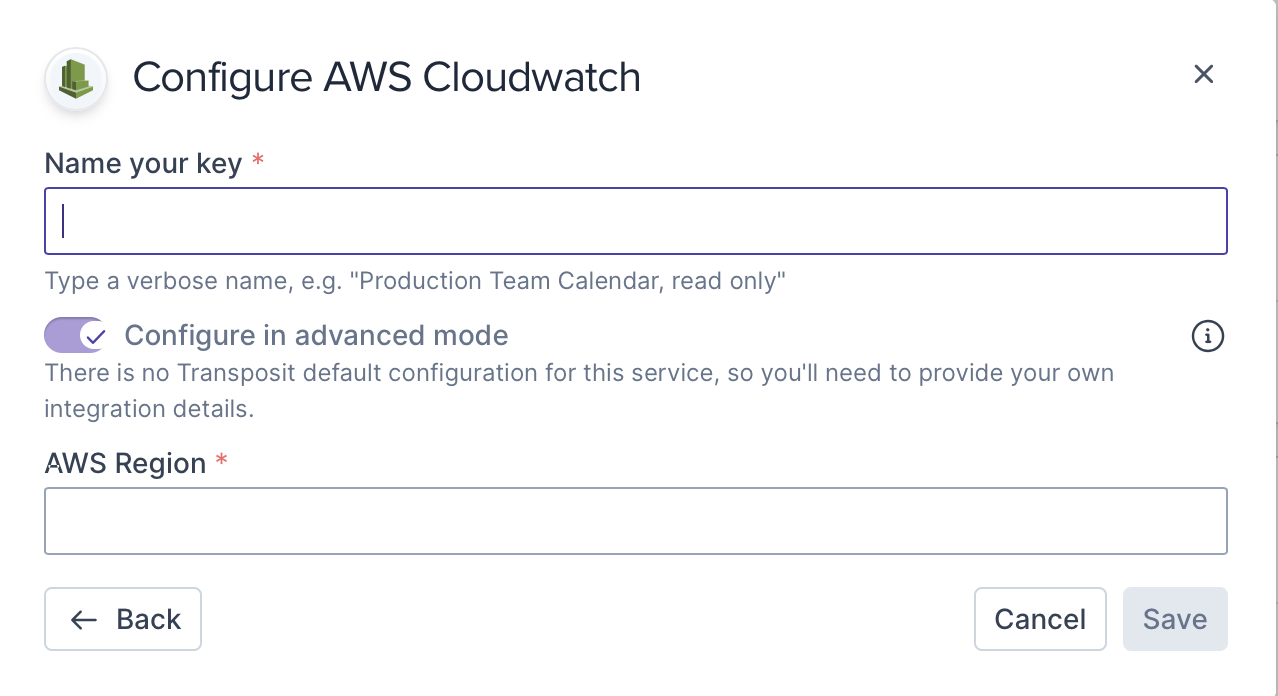

  2. In the New configuration: AWS Cloudwatch dialog, specify a configuration name, define your CloudWatch settings, and click Save.

  3. In the Service Group Settings, select the Keys tab, click Add key, and search for CloudWatch. Click Create a key, specify a key name, select the configuration you created above, and click Save.

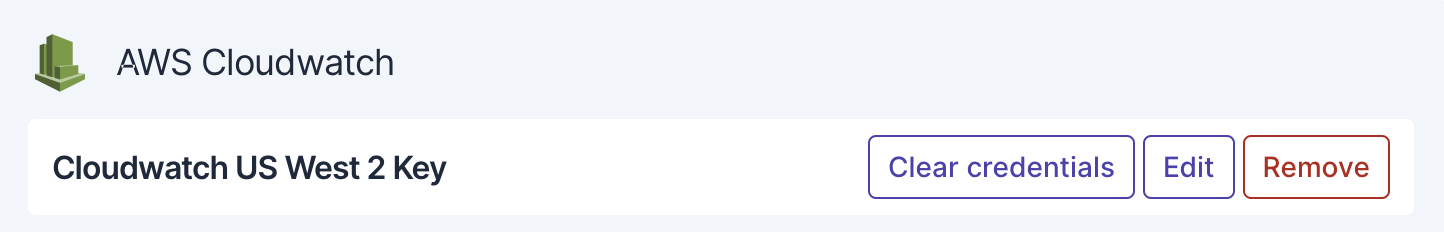

  4. In the Keys page, where your key is now listed, click Authenticate.

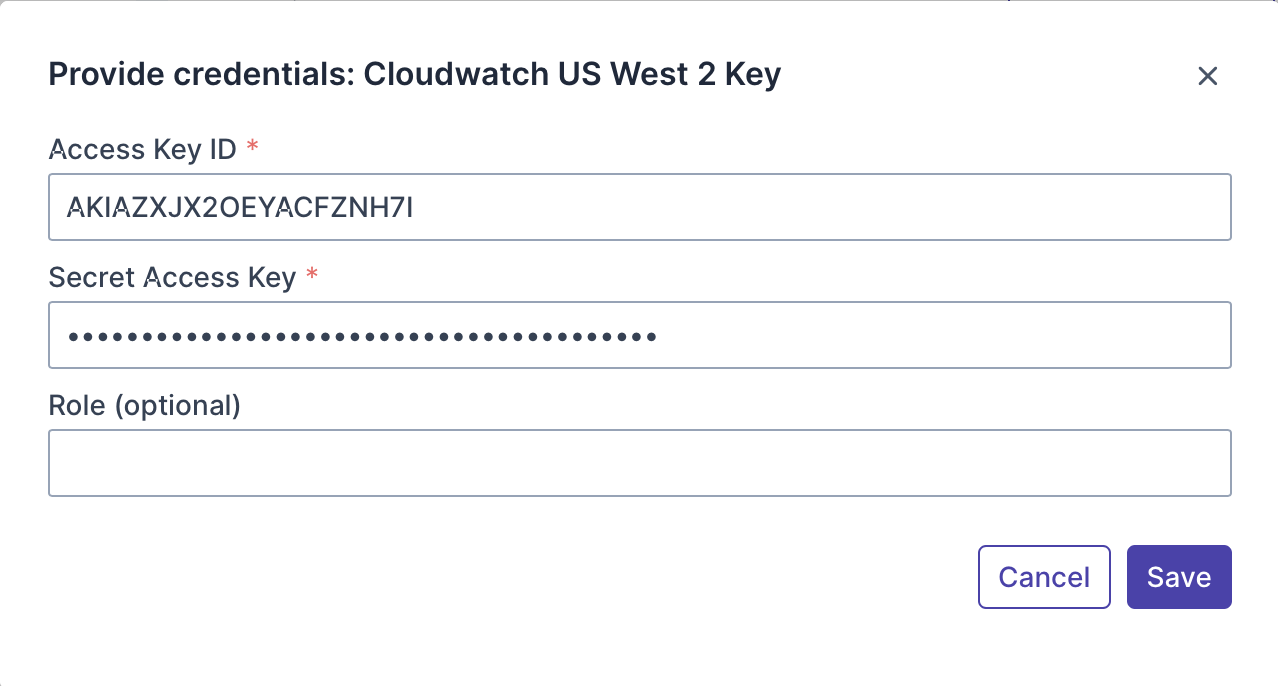

  5. Enter the access key ID and secret access key and click Save.

Trying Out the Connector#

To verify that the connector is set up correctly, do the following.

  1. Add a new action in a script.

  2. Search for the actions related to CloudWatch, select the one you need, and click Add.

  3. Fill out the inputs.

  4. Assign the key that you created earlier.

  5. Run the script and take note of the output in Transposit.
